PostPosted: Thu Jun 13, 2013 3:54 pm
Offline
230 Mike
User avatar

Joined: Mon May 15, 2006 7:59 pm
Posts: 5141
Location: Kansas City, Table Rock Lake
That's very interesting. The part number on your thermostat is the same as mine, yet I know for a fact that mine is 160. In fact, I think I've got a spare at home, I'll pull it out tonight and see what it says.

_________________

Mike
2005 Four Winns 230/240
VP 5.7GXi/DP
1998 F-150 XLT
Boat Pic


Top
 Profile

PostPosted: Sat Jun 15, 2013 6:27 pm
Offline
email admin your custom rank

Joined: Thu Jun 29, 2006 10:26 pm
Posts: 5688
Location: Long Island NY
It makes a difference where on the housing you take your reading. I found that the top of the Thermo housing reads lower than the gauge. The spot that gives me the closest to the gauge reading is the intake manifold right under the Thermo housing. That gives me a reading very close to the temp gauge (gauge 160-165, intake 155-160).

_________________
88 Four Winns 200 Horizon
4.3 OMC Cobra-4bbl
2002 Walker Bay 10/2012 Suzuki 2.5
2008 Walker Bay 8

1998 Jeep Grand Cherokee 4.0/Selectrac
2007 Jeep Grand Cherokee 5.7 Hemi/Quadradrive II


Top
 Profile

PostPosted: Sun Jun 16, 2013 1:14 am
Offline
230 Mike
User avatar

Joined: Mon May 15, 2006 7:59 pm
Posts: 5141
Location: Kansas City, Table Rock Lake

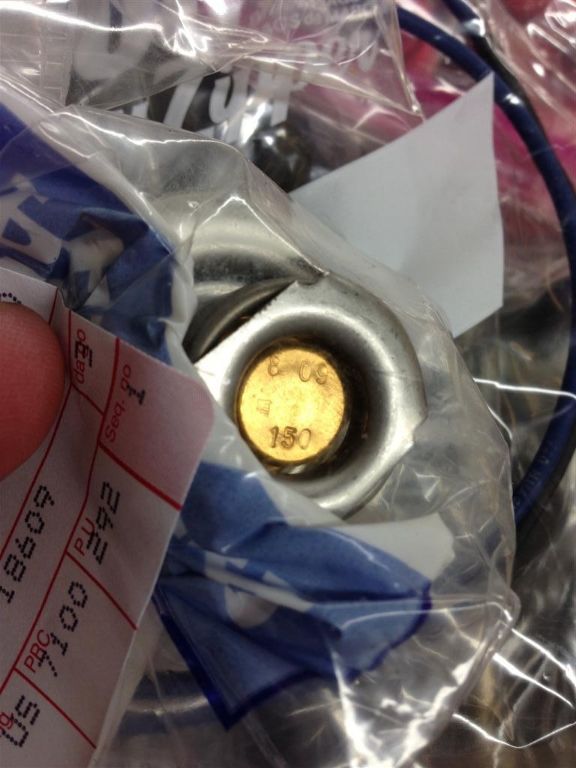

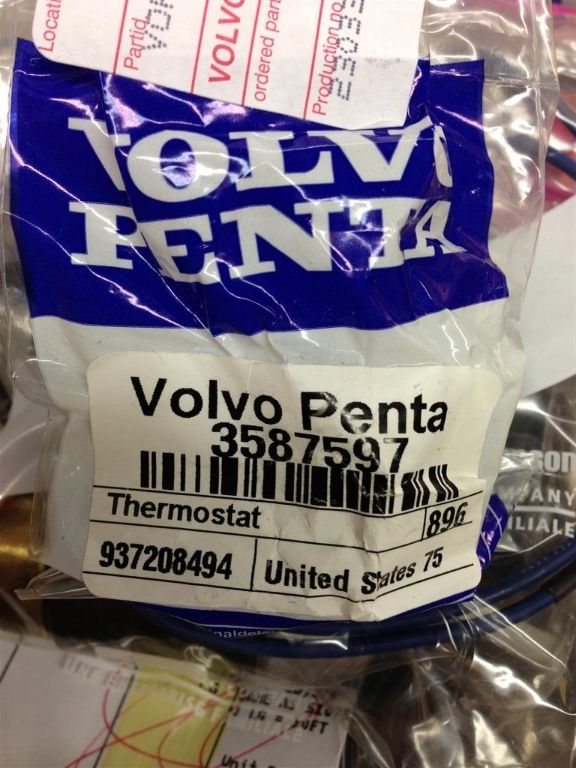

Now I'm really stumped. I bought this a few years ago to keep on hand.



_________________

Mike
2005 Four Winns 230/240
VP 5.7GXi/DP
1998 F-150 XLT
Boat Pic


Top
 Profile

PostPosted: Sun Jun 16, 2013 2:03 am
Offline
email admin your custom rank

Joined: Thu May 27, 2010 9:10 am
Posts: 1488
If I'm not mistaken isn't the saltwater Therm supposed to be a little cooler to prevent crystalization of salt? Seems I read that somewhere.

_________________
http://i1339.photobucket.com/albums/o71 ... wqm355.jpg


08' H210SS
VP 5.7Gi


Top
 Profile

PostPosted: Sun Jun 16, 2013 3:16 am
Offline
email admin your custom rank

Joined: Thu May 18, 2006 12:31 pm
Posts: 2108
Location: Chester, UK
TX H210SS wrote:
If I'm not mistaken isn't the saltwater Therm supposed to be a little cooler to prevent crystalization of salt? Seems I read that somewhere.


The thermostat in "raw water" cooled engines is "cooler" to try to reduce solids build up in salt and hard water operating environments. The same thermostat is used for both salt and fresh water use though. "Fresh water cooled" (closed cooling system) engines use a "hotter" thermostat, as they use an antifreeze/ water mix as the coolant.


Top
 Profile

PostPosted: Sun Jun 16, 2013 10:00 am
Offline
email admin your custom rank

Joined: Thu Jun 29, 2006 10:26 pm
Posts: 5688
Location: Long Island NY
The lower temp thermostat in salt is something I've heard for years, I think for sure for certain Mercruisers both a 140 and a 160 were available. However, I've looked high and low and have never seen 140s available for OMC/Volvo engines. I've always used the standard 160 stat and the only overheating issues I have had, have been from impellers that had taken a 'set' and did not pump that well, and mostly barnacle build up in the water intake area in the lower outdrive. What I'm now adding to my maintenance schedule is every other year to split the upper and lower units and scrape the barnacles out of that area and paint that area with anti fouling paint.
Graham if you ever run into a low raw water issue you might want to take a look at that. Depending on your fouling conditions, it can be pretty bad. Splitting the drive (and this applies to the Volvo SX as much as the OMC Cobra because the design in how they go together is very similar) can be difficult for 2 reasons. One, the bolts can seize in place unless they get backed out, cleaned off and coated with OMC gasket sealer or similar every few seasons. The other, is that salt deposits will build up under one of the 3 "O" rings that seal the upper and lower drive housings and make it well nigh impossible to get them apart. I came up with a little trick for this in case you ever need to do it ;)

_________________
88 Four Winns 200 Horizon
4.3 OMC Cobra-4bbl
2002 Walker Bay 10/2012 Suzuki 2.5
2008 Walker Bay 8

1998 Jeep Grand Cherokee 4.0/Selectrac
2007 Jeep Grand Cherokee 5.7 Hemi/Quadradrive II


Top
 Profile

PostPosted: Sun Jun 16, 2013 11:31 am
Offline
email admin your custom rank

Joined: Wed Jun 01, 2011 10:21 am
Posts: 5667
Location: Austin, TX
There's a 140 in my Mercruiser. Wouldn't mind swapping it out for a 160 for better economy.

_________________
1981 Columbia 8.7
2015 Yamaha FZR - 87mph - sold
2006 Yamaha GP1300R - sold
2003 Chaparral 215 SSI - sold
2009 Stingray 195CS - sold
2000 Four Winns H180 - sold
1976 O'day Daysailer II - sold

Rick's Four Winns H180 Mods/Upgrade Thread


Top
 Profile

PostPosted: Sun Jun 16, 2013 3:36 pm
Offline
email admin your custom rank

Joined: Thu May 18, 2006 12:31 pm
Posts: 2108
Location: Chester, UK
Lou,

I'll keep an eye out for that. Interestingly, the lower unit on my 2004 drive has fewer but much bigger inlet holes for the cooling water than on my 1999 drive ( I still have a damaged 1999 duoprop lower unit in my garage to compare the 2004 drive with, no idea what to do with it !). Maybe they recognised there was a potential issue due to marine growth.


Top
 Profile

PostPosted: Sun Jun 16, 2013 4:40 pm
Offline
email admin your custom rank

Joined: Sat Nov 24, 2012 9:49 am
Posts: 352
Location: Lititz, PA
Just ran the boat for the first time with the new impeller and t-stat. Glad to see that 150 is in fact the standard for the raw water cooled volvos. I was worried that I had the wrong part. This all started with the boat running cool. Today with the new stat, it ran about 10* warmer than with my old 150* stat. I am guessing that my old one was due for replacement. Anyway, boat ran great and my family and I had a fun Father's Day on the river.

Happy Father's Day to all the dads out there!

_________________
Seth


2005 210 Horizon
5.0L GXi
"Don't Think Twice"


Top
 Profile

PostPosted: Sun Jun 16, 2013 8:20 pm
Offline
email admin your custom rank

Joined: Thu Jun 29, 2006 10:26 pm
Posts: 5688
Location: Long Island NY
Sounds good, thanks for the follow up.
Graham, the older Volvos and Mercs both had more bout smaller holes for the water intakes. The Cobra has 4 large holes. It also had an internal water screen like a Johnson or Evinrude lower unit (which it is very similar to). The perblem I had was barnacles growing on the inside of this screen. When I split the drive I yanked that screen out and painted the inside of the water intakes with Trilux.

_________________
88 Four Winns 200 Horizon
4.3 OMC Cobra-4bbl
2002 Walker Bay 10/2012 Suzuki 2.5
2008 Walker Bay 8

1998 Jeep Grand Cherokee 4.0/Selectrac
2007 Jeep Grand Cherokee 5.7 Hemi/Quadradrive II


Top
 Profile
