Kind of an odd question, but I added a down rigger, and a fish finder, and went out on lake sunapee this past weekend to do some trolling. the slowest I could get the boat to go was about 3 1/2 4 mph. is there any way to adjust the low speed of my boat?

_________________
2000 Four Winns Horizon 170LS


Top
 Profile

PostPosted: Mon May 04, 2015 11:09 am
Offline
email admin your custom rank

Joined: Thu May 18, 2006 6:01 pm
Posts: 216
Location: Ohio
I see trolling plates used on Lake Erie but have no personal experience with them.



Top
 Profile

PostPosted: Mon May 04, 2015 1:01 pm
Offline
Guppy

Joined: Tue Apr 07, 2015 2:28 pm
Posts: 5
Location: Gardner, Ma
Nice! I will have to look into those. I was considering just punching a few holes in a 5 gal bucket, tying it to a cleat and dragging it behind the boat! lol! the plate looks like a much better plan. thanks

_________________
2000 Four Winns Horizon 170LS


Top
 Profile

PostPosted: Mon May 04, 2015 1:30 pm
Offline
email admin your custom rank
User avatar

Joined: Thu Apr 04, 2013 6:28 am
Posts: 1839
Location: South Carolina, USA
AZAZEL wrote:
Nice! I will have to look into those. I was considering just punching a few holes in a 5 gal bucket, tying it to a cleat and dragging it behind the boat! lol! the plate looks like a much better plan. thanks



i would use a stern eye over a cleat for strength.

_________________
Not Penny's Boat
1993 190 Horizon 5.0L EFI
http://www.smwebhead.com/phpBB3/viewtopic.php?f=3&t=11136
1977 14' CMF Skiff SOLD
2015 Emotion Stealth Angler 11


Top
 Profile

PostPosted: Mon May 04, 2015 7:45 pm
Offline
email admin your custom rank
User avatar

Joined: Sun Feb 04, 2007 9:07 am
Posts: 206
Location: Clinton, Utah
Adjust your idle down as low as possible for trolling. I've got mine down to 2.5 mph. Also I always try to run it out at the end of fishing, running that slow does tend to load things up some.

_________________
1999 180 Horizon LS 4.3 L GL Volvo SX
1994 Powerstroke
2002 Jeep Wrangler
not@work.gon
Happiness is an Empty Boat Trailer!!!


Top
 Profile

PostPosted: Mon May 04, 2015 8:17 pm
Offline
Shark
User avatar

Joined: Fri Dec 11, 2009 9:29 pm
Posts: 147
Location: Hudsonville, MI
In my 210, I used two small (30") trolling bags. One on each side so the boat tracked straighter. Will reduce your speed perfectly. Also, I believe the trolling plates only work for mercs since Volvos have the exhaust right where you would mount them. I heard they are more trouble then they are worth. I would avoid drilling holes and just deploy the bags and you can fine tune depending on the conditions (wind, waves and current). Sometimes one bag is enough. I'd recommend the heavy duty ones vs the cheapo rip stop versions. Those won't last too long.

_________________
http://youtu.be/-4ckF7u1iNk
2003 PowerQuest 260 Legend SX
2014 Lund WC 14

2007 H210 Volvo 5.7 Gi/SX (sold in 2012)
2007 H180 Volvo 3.0 (sold in 2009)


Top
 Profile

PostPosted: Mon May 04, 2015 8:20 pm
Offline
email admin your custom rank

Joined: Tue Jan 18, 2011 8:45 pm
Posts: 333
Berger wrote:
In my 210, I used two small (30") trolling bags. One on each side so the boat tracked straighter. Will reduce your speed perfectly. Also, I believe the trolling plates only work for mercs since Volvos have the exhaust right where you would mount them. I heard they are more trouble then they are worth. I would avoid drilling holes and just deploy the bags and you can fine tune depending on the conditions (wind, waves and current). Sometimes one bag is enough. I'd recommend the heavy duty ones vs the cheapo rip stop versions. Those won't last too long.


:wink:


Top
 Profile

PostPosted: Mon May 04, 2015 9:53 pm
Offline
email admin your custom rank

Joined: Fri Jul 27, 2012 11:17 pm
Posts: 1303
Location: Melbourne, Australia
pickledboater wrote:
Adjust your idle down as low as possible for trolling. I've got mine down to 2.5 mph. Also I always try to run it out at the end of fishing, running that slow does tend to load things up some.


Be cautious if you're running a conventional hydraulic flat tappet cam!

_________________
2011 Four Winns H180 SS.
Aussie built Mustang 2800.
SOLD - 1997 Four Winns Horizon RS


Top
 Profile

PostPosted: Wed May 06, 2015 4:40 pm
Offline
email admin your custom rank
User avatar

Joined: Sun Feb 04, 2007 9:07 am
Posts: 206
Location: Clinton, Utah
Ok, you got me. Why do you say that DW? Am I doing something dumb here?

_________________
1999 180 Horizon LS 4.3 L GL Volvo SX
1994 Powerstroke
2002 Jeep Wrangler
not@work.gon
Happiness is an Empty Boat Trailer!!!


Top
 Profile

PostPosted: Wed May 06, 2015 7:20 pm
Offline
email admin your custom rank

Joined: Fri Jul 27, 2012 11:17 pm
Posts: 1303
Location: Melbourne, Australia
pickledboater wrote:
Ok, you got me. Why do you say that DW? Am I doing something dumb here?


Low RPM (<500) puts excessive load on cam lobes and reduces the effectiveness of lifter rotation = Bad news for lifters & lobes! :wink:

_________________
2011 Four Winns H180 SS.
Aussie built Mustang 2800.
SOLD - 1997 Four Winns Horizon RS


Top
 Profile

PostPosted: Fri May 15, 2015 12:13 pm
Offline
Minnow

Joined: Sat May 24, 2008 12:00 pm
Posts: 13
I run my 4.3 at about 600 rpm, and use two 5 gallon buckets for drag. This gets me to about 2.2 mph on the GPS, depending on wave action, etc.


Top
 Profile

PostPosted: Fri May 15, 2015 1:09 pm
Offline
email admin your custom rank

Joined: Wed Jun 01, 2011 10:21 am
Posts: 5667
Location: Austin, TX

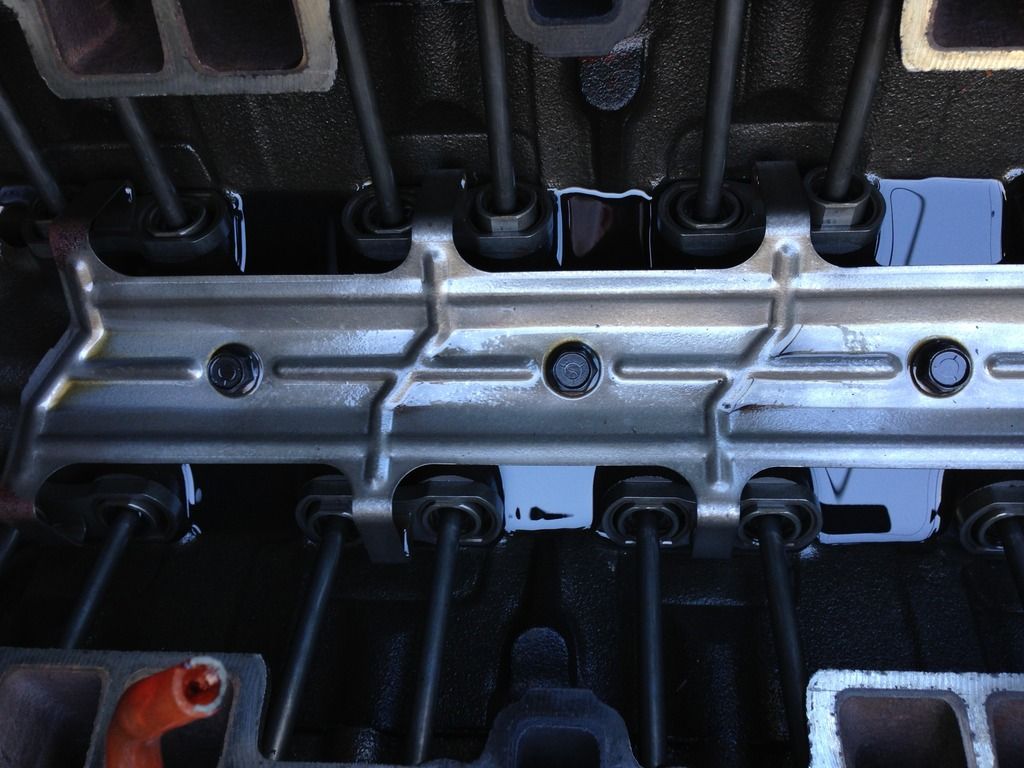

All vortec motors are roller lifters. So if your valve cover bolts are in the center and not around the edges you're fine.

The 3.0 is flat tappet in any year.

_________________
1981 Columbia 8.7
2015 Yamaha FZR - 87mph - sold
2006 Yamaha GP1300R - sold
2003 Chaparral 215 SSI - sold
2009 Stingray 195CS - sold
2000 Four Winns H180 - sold
1976 O'day Daysailer II - sold

Rick's Four Winns H180 Mods/Upgrade Thread


Top
 Profile

PostPosted: Fri May 15, 2015 7:02 pm
Offline
email admin your custom rank

Joined: Fri Jul 27, 2012 11:17 pm
Posts: 1303
Location: Melbourne, Australia
ric wrote:
So if your valve cover bolts are in the center and not around the edges you're fine.


Not true, old mate.
From 1987-1997, they were using the Vortec blocks, but with flat tappet cam's.
These were the TBI/ Swirl Port Heads (12 bolt) & not the higher flowing 8 bolt Vortec Heads.



_________________
2011 Four Winns H180 SS.
Aussie built Mustang 2800.
SOLD - 1997 Four Winns Horizon RS


Top
 Profile

PostPosted: Fri May 15, 2015 9:41 pm
Offline
email admin your custom rank

Joined: Wed Jun 01, 2011 10:21 am
Posts: 5667
Location: Austin, TX
I understand the sales model where it would totally screw it up if the 5.7GL and 5.7GXi made the same HP (cause they would without changing cams), but to remove the reliability of roller lifters is just wrong.

_________________
1981 Columbia 8.7
2015 Yamaha FZR - 87mph - sold
2006 Yamaha GP1300R - sold
2003 Chaparral 215 SSI - sold
2009 Stingray 195CS - sold
2000 Four Winns H180 - sold
1976 O'day Daysailer II - sold

Rick's Four Winns H180 Mods/Upgrade Thread


Top
 Profile

PostPosted: Sat May 16, 2015 8:34 am
Offline
email admin your custom rank

Joined: Sun May 20, 2012 4:31 pm
Posts: 873
Location: Minneapolis, MN
The trolling plate could be mounted on the SX drive. There are a few choices and they work. Just make sure to retract it before accelerating or you might shear a pin or break something. Depending on the boat there may be clearance issues when the out drive is trimmed up.

Trolling bags work. Two bags reduced my 190 Horizon from 3.8 to 1.8 mph. Depending on how and where they are attached, they may work well or they may make boat handling a challenge, especially in a wind. Attach a line to the tail end of each bag to make bag retrieval easier. Sometimes the bag can be in the way when landing a fish.

Depending on the boat, a small outboard might be a more expensive option.

A bow mount electric trolling motor is a good choice, but mounting it may be a challenge. Either a gas or electric motor will cost at least we eral hundred dollars.

I looked at several of these options with my 95 190 Horizon, but couldn't find an economical or practical way to mount a motor. I stuck with a pair of bags from the front cleats that were under the boat so they were out of the way. Handling was challenging at times and it takes a bit of time to deploy or retrieve.
