Searching for a fourwinns trailer for my "new" 2002 240H. Does anyone know what model # i should be looking for? I have found a four winns that has a capacity of 4840 lbs.... The distance from the front bumper to the end of the bunk is 19feet. Not sure if this trailer is long enough. All feedback welcome.

I have basically the same boat. That trailer sounds too small.

You can go the Four Winns website and get all the specs for your boat, tailer, etc.

Here is the info on your trailer:

240 HORIZON TRAILER SPECIFICATIONS

240 Horizon (Model #D0240235)

Length w/ Tongue 24'6" 7.47 m
Length w/ Tongue Folded 21' 6.40 m
Width 102" 2.59 m
Empty Weight 1,260 lbs 572 kg
Carrying Capacity 6,240 lbs 2,830 kg
GVWR 7,500 lbs 3,402 kg
(Gross Vehicle Weight Rating)
GAWR (Gross Axle Wt. Rating) 3,750 lbs 1,701 kg
Height 7'9" 2.36 m
(Top of Windshield, w/ Boat on Trailer)
Tire Size ST225/75R15 ST225/75R15
Load Range D D
Axle Tandem Tandem
Axle Rating 5,200 lbs 2,359 kg
Winch 2,000 lbs 907 kg
Jack Capacity 1000 lbs 454 kg
Wheel Type Modstyle Modstyle
Hub 6 Lug 51/2" Bolt Pattern 6 Lug 14 cm Bolt Pattern
Ball Size 2 5/16" 6 cm

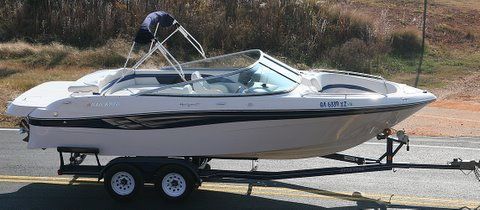

Here is a picture of my boat on the trailer:

_________________
John
2001 Four Winns Horizon 230
VP 5.7 GSi / DP
2007 Ford Expedition EL

What part of the country are you in? If your buting a trailer new dont get a Four Winns brand, they are cheaply made.

_________________

Go aluminum I beam. If I had bought my boat new, I would have taken that over the standard FW trailer anyday.

_________________
2007 358 T-5.7GXi IB
Previous Boats
'08 H240, '08 V318, '04 268, '04 225

Just buy a damn trailer already Dad!! the water is gonna freeze sonn so get on it!!

Matt

The Four Winns trailers are not as bad as many make them out, IMO. I think the failures are from trailers that have travelled many miles especially at once but my trailer regularly gets hauled 50 miles each way and I have never had a problem. BUt.... you will have an easier time buying an aftermarket trailer rather than trying to find a Four Winns one. I think most people that have trailers will tend to keep them for off season storage so they rarely come available. That being said... I think I saw one on Ebay recently. Search "Four Winns" I do atleast once a week.

_________________
Marc, Kathlin & Nathalie


'89 Chaparral Laser 32

'93 Vista 245, 5.8L w/ King Cobra

Former Boats
'01 H260, 7.4 VP Duoprop
'98 H200, 5.0 GL w/VP SX drive

You can get a FW trailer brand new from a dealer. The price on the trailers are not as bad as many would think.

Just a note on their quality. Around 1999-2002 they were not that great, today they are much much better and I would choose one over any other trailer for towing. I tow about 500 boats a year and there is nothing that tows as well on the market, I have towed them all.

Any trailer dealer should be able to fit a trailer to your boat. I agree that FW trailers have left a lot to be desired in the past. Still on the fence as to the recent (2009) upgrades available in terms of price point versus after market competition. Were I in your shoes, and timing was an issue, I'd get the boat pulled and temprarily put on blocks while researching trailers hard. I don't know if you intend any brackish or salt water use, but going for a trailer with all SS nuts, bolts, washers, etc. would be pretty high on my wish list. Hubs with bearing buddy type seals goes without saying. High up on the list would be gatorhide like encapsulation, and real wood bunks with carpet installed using SS staples (lot of trailers don't surprisingly). Spare rim(s) with tire(s) for safety. Some would add LED lights, and self retracting straps, although this can be added "down the road".

_________________
2007 Horizon 200
4.3L GXi/ SX 225 HP

I have no complaints at all about my FW trailer and I haul it thousands of miles each year on pretty ordinary Australian roads... as I have said previously, sure there may be some better trailers out there, but there are a hell of a lot that are worse than FW's!

_________________


Alec

2006 Horizon 190
VP 4.3GL/SX, Sunsport
