Hello all,
My speedo transducer needs to be replaced for my 2000 H230. Do you all know if the orginal sender from Four Winns is just speed or is it the temp sensor as well? Airmar has the S69 and the ST69 models, the latter having temp as well. I found this one at Ebay http://cgi.ebay.com/ebaymotors/Airmar-Water-Speed-Wheel-New_W0QQcmdZViewItemQQ_trksidZp3286Q2em20Q2el1116QQitemZ180274155186 I have not been able to cross reference the model number to any of the Airmar products on line bit it looks like the S models. My guess this one is pure speed and no temp. Thoughts?
Thanks.

_________________
2000 Horizon 230

if your dash has the temp display which it should, then that is not the correct paddle wheel. The four winns part number for what you need is 028-1102-02

Thanks Chalk

_________________
2000 Horizon 230

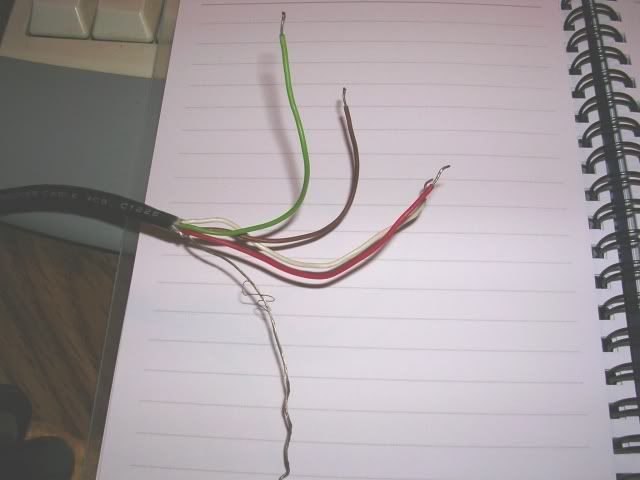

I've received the transducer from the guy on Ebay. The unit he sent has 4 wires and a shield. I do not have the boat here so I can't check the existing wire/cable coming from the current transducer. I do know the harness is 4 pin with certain colors (see below). The unit I received has totally different colors so now I need to identify which goes to which. I checked the resistance and the only ones that were not infinity were Shield to Green (3.8 m-ohm) and White to Brown (13.2 k-ohm). All other were of course, infinity. You folks have a clue which wires match up to the harness?

_________________
2000 Horizon 230

I'll answer my own question. This transducer is the exact same one that is on my boat now. Which wires go to which on the connector is self explanatory.

_________________
2000 Horizon 230
