 Post subject: Total Engine Failure
PostPosted: Fri Jul 22, 2011 1:31 am
Offline
Seahorse

Joined: Sat Jun 25, 2011 7:05 am
Posts: 21
So Horizon fans...have a look at the day I had on the lake last weekend.

Cooking along at 3500 rpms not too fast, just cruising along and all of a sudden very loud noise from the engine...I shift to neutral pop the hatch to find smoke a oil everywhere.

Long story short, I am stuck in the middle of the lake - call the cops to tow me to a marina to get it to safety and out of the water.

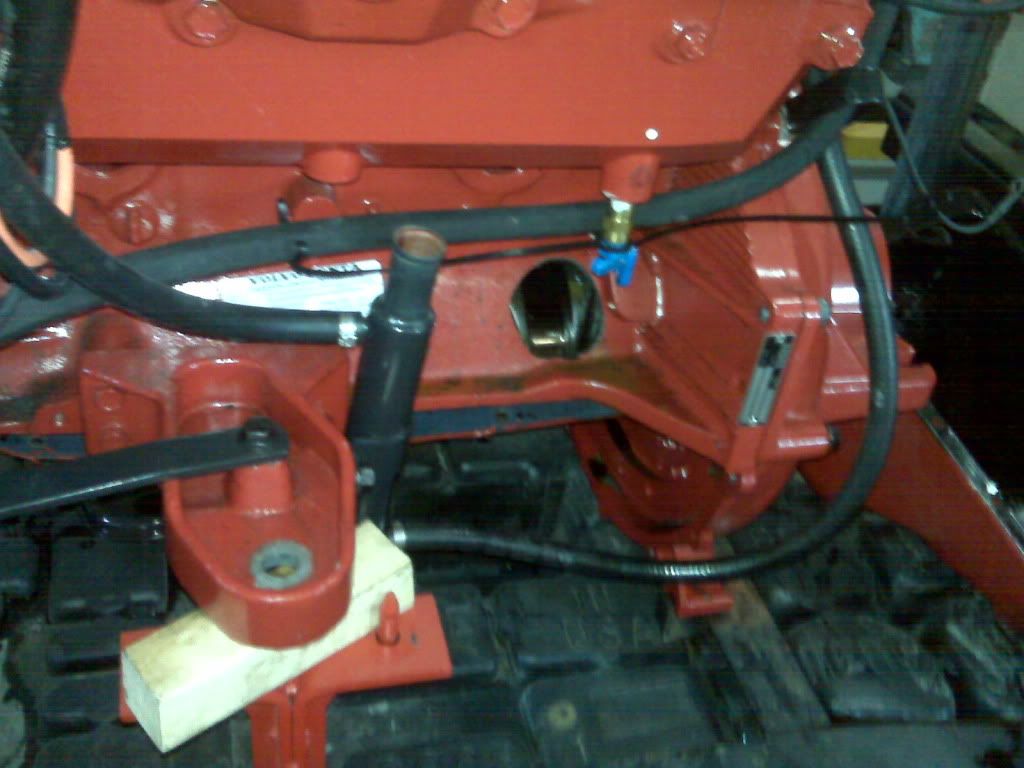

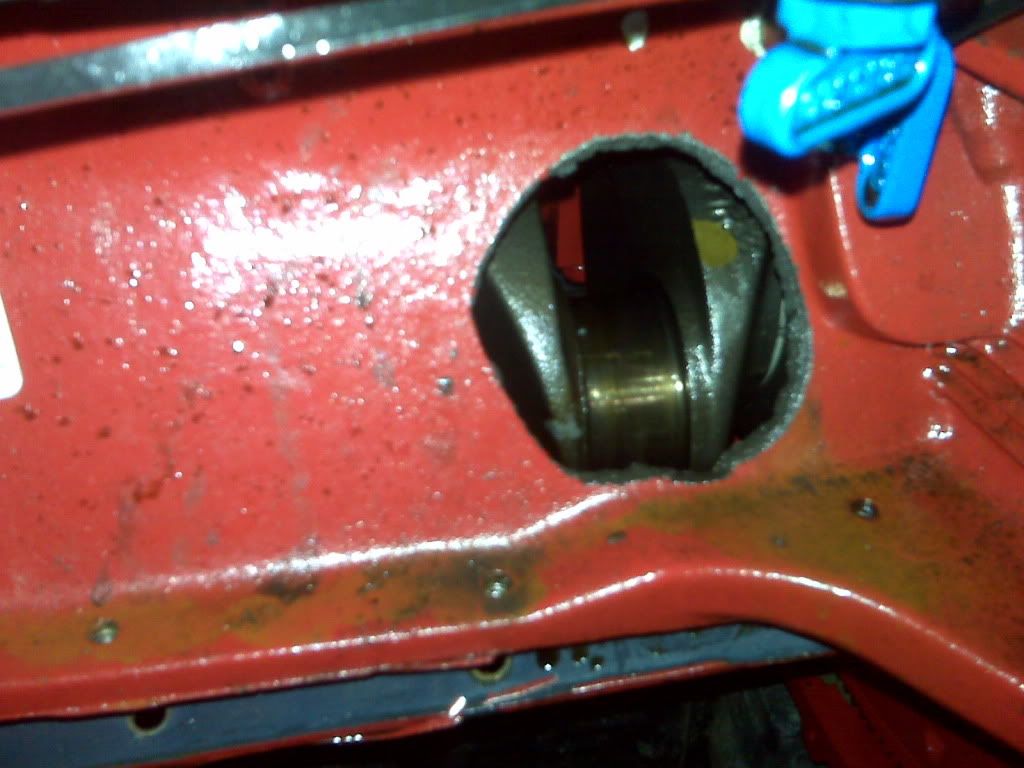

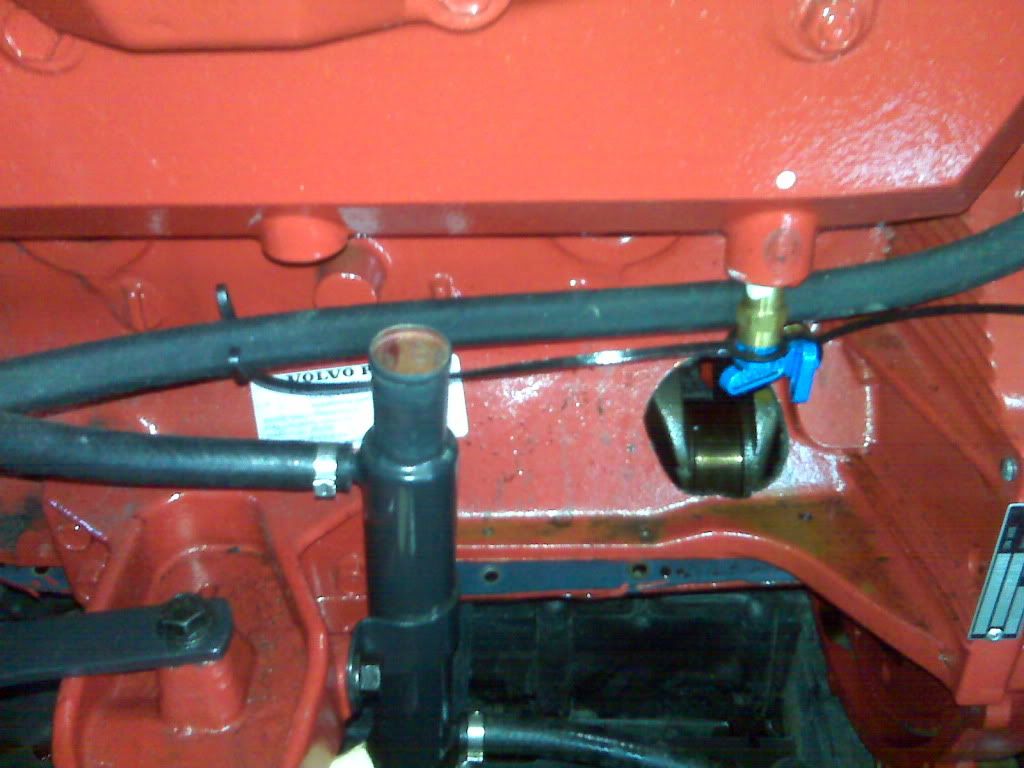

So it looks like the connecting rod snapped and piston head popped through the side of the engine and made a hole the size of an orange.

Any one had this happen before? I am currently dealing with Volvo Penta warranty department.

Here are the pics...





Any ideas/thoughts?

_________________
Dack Heslop
Toronto, ON Canada
2008 Four Winns H180
Volvo Penta 3.0 GL/SX 135 h


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 6:04 am
Offline
email admin your custom rank

Joined: Thu Apr 05, 2007 1:10 pm
Posts: 531
Location: North Bay, Ontario Canada
Wow! I have heard of this happening before, not on the 3.0 specifically, but on other engines.

Are you sure it was the piston that went through the block? I mention this because of the location of the hole on the block. To me, it looks like the connecting rod cap let loose. I guess it really Doesn't really matter what put that big bejesus hole in the side of the block, it isn't supposed to be there!

I hope Volvo takes care of it for you. Good Luck.

_________________
2009 H180 w/3.0 Merc
Homebuilt Minimax Hydro
2011 Zodiac Cadet 310
Image Image


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 7:41 am
Offline
email admin your custom rank

Joined: Sun Nov 21, 2010 8:03 am
Posts: 2238
Location: Winthrop, Ma.
I think what happened & it is just a thought. That the 2 bolts, on the bearing backed out or snapped off on the down stroke. On coming up, the bearing went though threw the block. Note that the bearing is not on the shaft. I am sure that the piston and what is left of the rod is still in the block.

Other than the block, did you find any other parts that whent threw??


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 8:27 am
Offline
Nauti Luv

Joined: Mon Jan 05, 2009 9:55 am
Posts: 2186
Location: Little Elm - Lake Lewisville TX
I have seen this happen before, but not in a boat. An engine is an engine however. Please tell me you have a warranty...?

_________________
Current Boat:
2004 Sea Ray 320 Sundancer "Nauti Luvin'"

Previous Boats:
1999 298 Vista "Seas The Day"
2008 H200SS "Nauti Luv"
2006 Tahoe Q4


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 9:16 am
Offline
email admin your custom rank

Joined: Thu Jun 29, 2006 10:26 pm
Posts: 5690
Location: Long Island NY
WOW on a 2008 boat, someone on that engine line did not install the con rod right, or there was a metal flaw in the bolts...hopefully Volvo steps up and gives you a new short block at least if not a long block...
This is why it is good to keep records of buying oil and filters if you do your own work or receipts if you have it done by a shop...

_________________
88 Four Winns 200 Horizon
4.3 OMC Cobra-4bbl
2002 Walker Bay 10/2012 Suzuki 2.5
2008 Walker Bay 8

1998 Jeep Grand Cherokee 4.0/Selectrac
2007 Jeep Grand Cherokee 5.7 Hemi/Quadradrive II


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 9:41 am
Offline
email admin your custom rank

Joined: Thu May 18, 2006 12:31 pm
Posts: 2108
Location: Chester, UK
I've not seen something like that in years. (old guy's 1960's Riley car towed into the garage where I was working one Summer whilst still at school, he was claiming the dynamo had fallen off -after we'd put a new fan belt on- and knocked a hole in the engine ), Uum, we don't think so !

I noticed in the photos the sump has been unbolted; what was in it ?

I'd say the big end bolts were either overtightened, beyond their elastic limit making them prone to fatigue, or were not tightened enough. The cap and bolts / bolts remains should still be in the sump if that is the case. The crank journal seems to show some evidence of hitting the con rod big end.

Graham


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 3:59 pm
Offline
wkearney99

Joined: Fri May 19, 2006 3:50 pm
Posts: 2444
Location: Boat in Annapolis, live in Bethesda, MD
Heh, not often you get to see such dramatic results of 'throwing a rod'. Could've been any number of things. The telling thing will be what's happened to the connecting rod and it's bearing cap (the bottom half around the crankshaft). Parts of the bolts still in the con rod, or having worked loose. That and scoring to the bearing journals. No doubt a test of the oil is in order too, to see if it contributed to the failure. As in, if you don't change the oil often enough all sorts of things can go very, very wrong.

_________________
-Bill Kearney, 2005 348 Vista


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 4:46 pm
Offline
email admin your custom rank

Joined: Thu May 18, 2006 12:31 pm
Posts: 2108
Location: Chester, UK
I don't think a longer than usual oil change interval would cause a con rod cap to part company with the conrod ; for sure, egraded oil could wear out the conrod big end shell bearings and score the crank journal. The rest of the engine would then probably seize due to lack of oil pressure/ spray from the conrod big end to the underside of the pistons/the piston bores in the block.

Incidentally, why is there a paint dab on the crank? I know Ford Europe used to mark blocks with paint if there was something unusual necessitating remedial work at the engine plant, such as boring main bearing bores by +0,015" to get them in line .(don't ask me how I know, it was very expensive for the bearing supplier who supplied me with the wrong bearings for a block before Ford started marking them !) Maybe GM do the same and there was something originally wrong with that crank journal ?.

Graham


Last edited by Graham R on Fri Jul 22, 2011 4:56 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Fri Jul 22, 2011 4:53 pm
Offline
email admin your custom rank

Joined: Wed Jun 01, 2011 10:21 am
Posts: 5667
Location: Austin, TX
Please don't tell me you were running a sierra oil filter

_________________
1981 Columbia 8.7
2015 Yamaha FZR - 87mph - sold
2006 Yamaha GP1300R - sold
2003 Chaparral 215 SSI - sold
2009 Stingray 195CS - sold
2000 Four Winns H180 - sold
1976 O'day Daysailer II - sold

Rick's Four Winns H180 Mods/Upgrade Thread


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Mon Jul 25, 2011 11:10 am
Offline
Seahorse

Joined: Sat Jun 25, 2011 7:05 am
Posts: 21
Thanks for all the insight...here is where I am at...

I am out of warranty so not sure what is going to happen, but it is a pretty serious engine failure that just isn't supposed to happen, so yes I am hoping Volvo steps up and backs their product - but we will see.

At the moment I need to get the engine to the local Volvo dealer, which is 2 hours away from where the boat is right now, as Volvo head office won't deal with the Marina I go to as he is a Merc dealer.

So looks like I am going to have to pack it up and take a road trip.

Wish me luck...

_________________
Dack Heslop
Toronto, ON Canada
2008 Four Winns H180
Volvo Penta 3.0 GL/SX 135 h


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Mon Jul 25, 2011 4:53 pm
Offline
email admin your custom rank

Joined: Thu May 18, 2006 12:31 pm
Posts: 2108
Location: Chester, UK
The sump's been removed; what was lying inside it ? Any pieces give a clue as to what hapened (then a clue as to the cause of what happened).

Worst case, if VP deny any liability, the hole in the block, being in a single skin area is repairable; it's a a pretty neat hole and there's no cooling jacket there. However, there's probably a lot of other bits that would need replacing as well. so the cost may well be higher than that of a longblock; and if you have to buy one, start up an internet " VP don't take responsibility for their product quality " website etc !

Graham


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Mon Jul 25, 2011 5:28 pm
Offline
email admin your custom rank

Joined: Wed Jun 01, 2011 10:21 am
Posts: 5667
Location: Austin, TX
http://www.rapidomarine.com

_________________
1981 Columbia 8.7
2015 Yamaha FZR - 87mph - sold
2006 Yamaha GP1300R - sold
2003 Chaparral 215 SSI - sold
2009 Stingray 195CS - sold
2000 Four Winns H180 - sold
1976 O'day Daysailer II - sold

Rick's Four Winns H180 Mods/Upgrade Thread


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Tue Jul 26, 2011 7:18 pm
Offline
Shark

Joined: Fri Jan 29, 2010 6:24 pm
Posts: 129
Location: Huntington Beach, CA / Boulder City, NV
Dack Heslop wrote:
I am out of warranty so not sure what is going to happen, but it is a pretty serious engine failure that just isn't supposed to happen, so yes I am hoping Volvo steps up and backs their product - but we will see.


You're out of warranty and I was only 27 hours into warranty with Volvo. Volvo step up......GOOD LUCK!

_________________
2011 Four Winns H260 Frenzy $ea Note
VP 8.1GXi/DP EVC 420HP
2007 Silverado 1500 CrewCab 4x4

Previous:
2002 Four Winns H200
5.0GXI 270HP


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Wed Aug 03, 2011 12:05 am
Offline
email admin your custom rank

Joined: Mon May 03, 2010 11:12 am
Posts: 281
:shock:

Please follow up on Volvo's response to this...

_________________
2007 FW Horizon 200 5.0GXi/SX-A


Top
 Profile

 Post subject: Re: Total Engine Failure
PostPosted: Wed Aug 03, 2011 12:39 am
Offline
email admin your custom rank

Joined: Wed Jun 22, 2011 2:33 am
Posts: 1026
Very curious to see how this works out with Volvo. Does Mercury cover their customers better
