Does anyone have a picture or know the part number for the blower on the 2003 Horizon/Freedom 180?

Thanks

_________________
2010 Sea Hunt Triton 220 "Big Whiskey"
2003 FW Freedom 180 Volvo Penta 4.3GL/SX-M "It'll Do Four Now" (Sold)
2012 Avalanche LTZ 4X4

They are pretty universal. Most likely a 3" inline blower. The other common choice is a 4".

I just replaced mine last month because the original was loud. Bought a Shurflo first and it was noisier than the old one. Returned it for a Rule and it was nice and quiet. All had the same mounting pattern, 2 screws. Had to cut off my wire connector and use new end crimp connector.

_________________
Terry
Current: 07 Crownline 255 CCR cuddy - 350 Mag MPI/B3 "Casi Cielo"

Previous:97 245 Sundowner 5.7GI/SX

Tow vehicle: 1986 GMC 2500 Camper Special 454/TH400

Thanks 97

I was thinking it might be something specific to my boat/engine.

_________________
2010 Sea Hunt Triton 220 "Big Whiskey"
2003 FW Freedom 180 Volvo Penta 4.3GL/SX-M "It'll Do Four Now" (Sold)
2012 Avalanche LTZ 4X4

No, which is a good thing. You will 2 need 16" wire ties and maybe some butt connectors.

My 2004 is a 4". I will check in the am and get you the model # that I have

_________________
2004 Horizon 180 3.0
Tow: 2009 Buick Enclave CXL AWD

Rule model 240 4" in-line blower

_________________
2004 Horizon 180 3.0
Tow: 2009 Buick Enclave CXL AWD

Mine is an Attwood Turbo 3000...how do I know this. Because I just had to order a new one off Amazon

Thanks guys!

Looks like it is a pain to get at!

_________________
2010 Sea Hunt Triton 220 "Big Whiskey"
2003 FW Freedom 180 Volvo Penta 4.3GL/SX-M "It'll Do Four Now" (Sold)
2012 Avalanche LTZ 4X4

Yeah, mine is a real pain to access. Had to hug the exhaust manifold with the riser choking me and could still barely reach it with my fingertips. Kept dropping the screws into the bilge. One of the best tools I ever bought was a long three finger gripper to pick up all the things dropped into the bilge.

_________________
Terry
Current: 07 Crownline 255 CCR cuddy - 350 Mag MPI/B3 "Casi Cielo"

Previous:97 245 Sundowner 5.7GI/SX

Tow vehicle: 1986 GMC 2500 Camper Special 454/TH400

Mine is as well. Unless I want to dismantle the rear section of my boat. Not looking forward to it.

97 I have that tool too!!

I am thinking I might be able to take the seat and seat back off. But not sure I can reach.

_________________
2010 Sea Hunt Triton 220 "Big Whiskey"
2003 FW Freedom 180 Volvo Penta 4.3GL/SX-M "It'll Do Four Now" (Sold)
2012 Avalanche LTZ 4X4

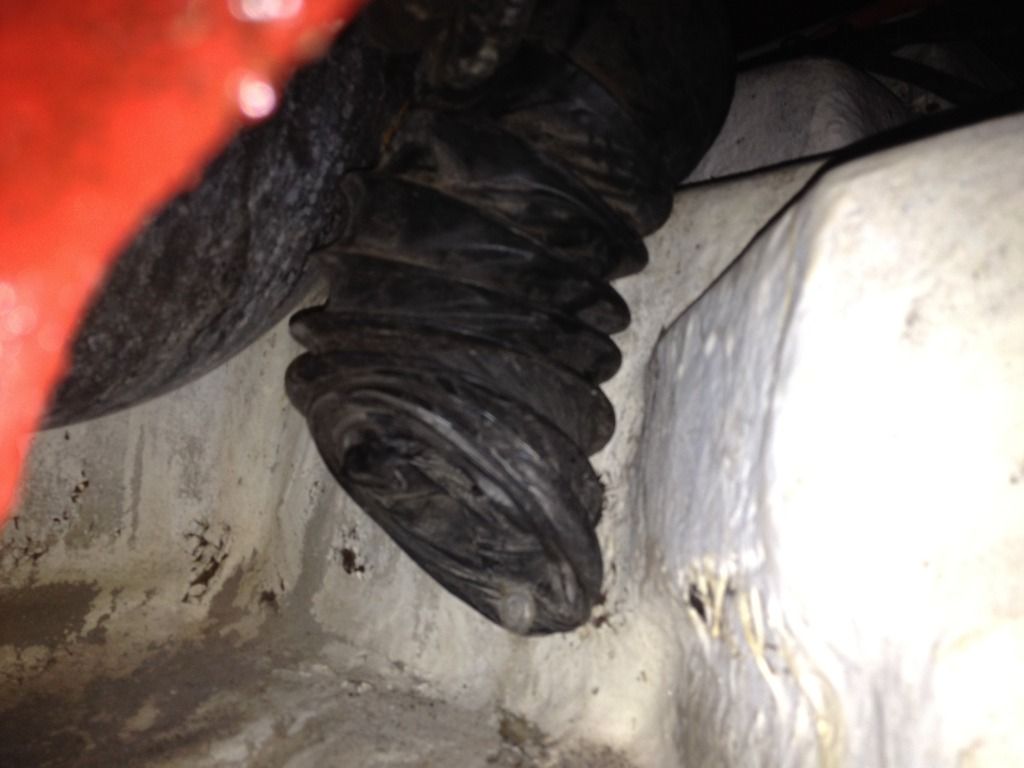

Is my blower missing? I traced the black vent dryer type hose to the bottom of the engine. And here it is not connected to any thing:



Is it missing? I snapped a pic. Only thing I can think us mechanic did not hook it up or put it back on when I had the manifolds and risers replaced.

Or is hidden down there and I missed it?

_________________
2010 Sea Hunt Triton 220 "Big Whiskey"
2003 FW Freedom 180 Volvo Penta 4.3GL/SX-M "It'll Do Four Now" (Sold)
2012 Avalanche LTZ 4X4

Mine is located on the "top" of the engine compartment and the tubing runs down to the bottom of the bilge so the blower can pull the air out. From what I can see it appears to be missing.
